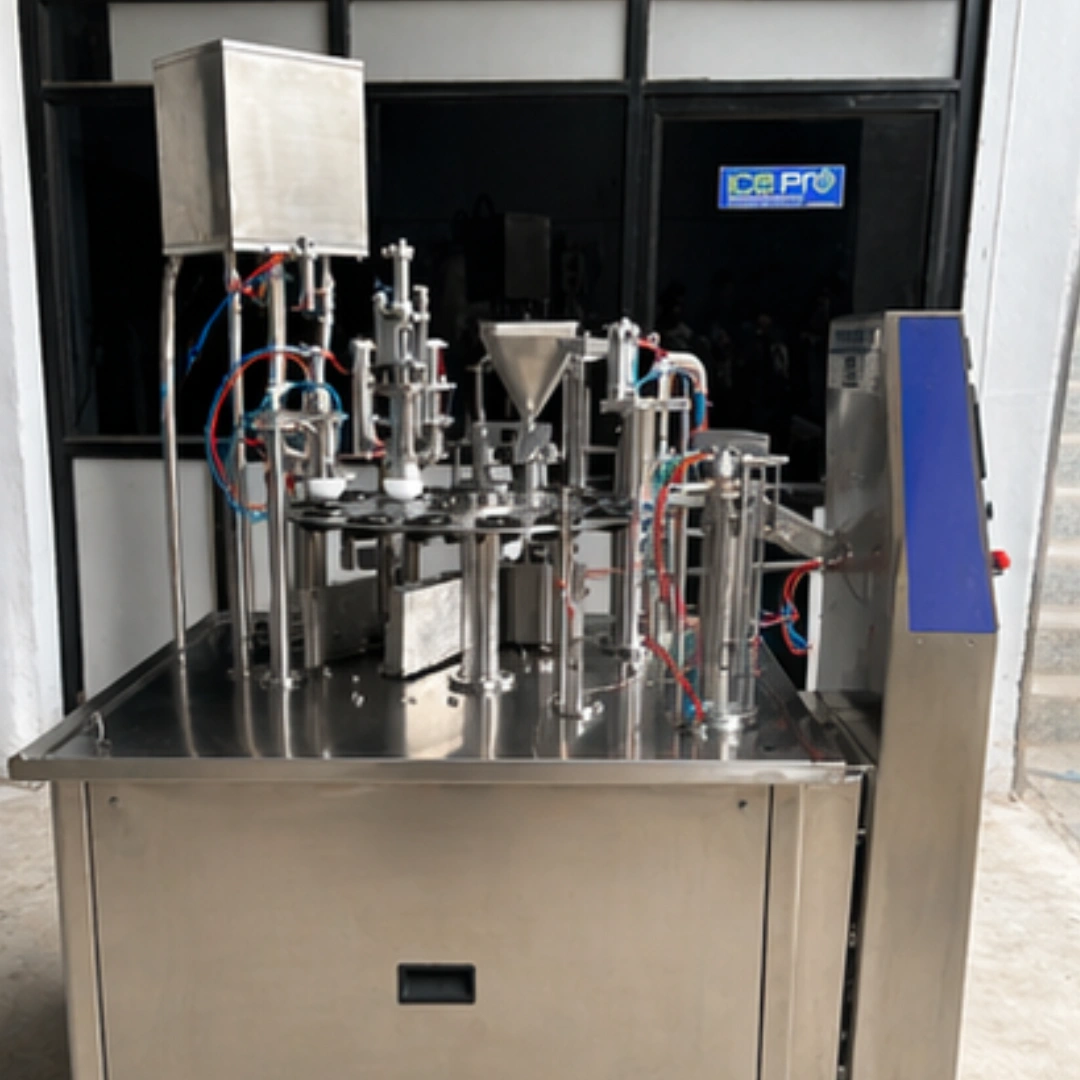

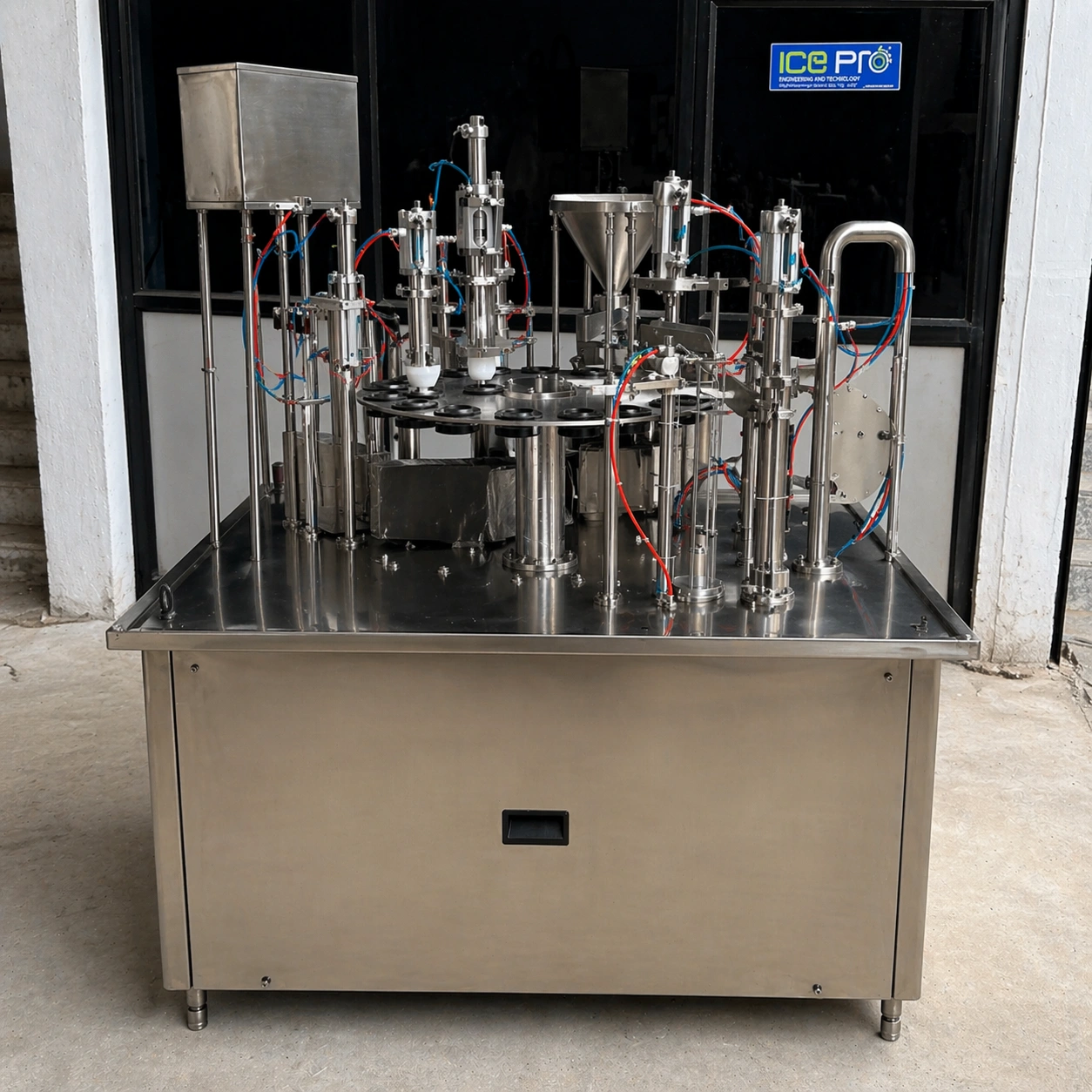

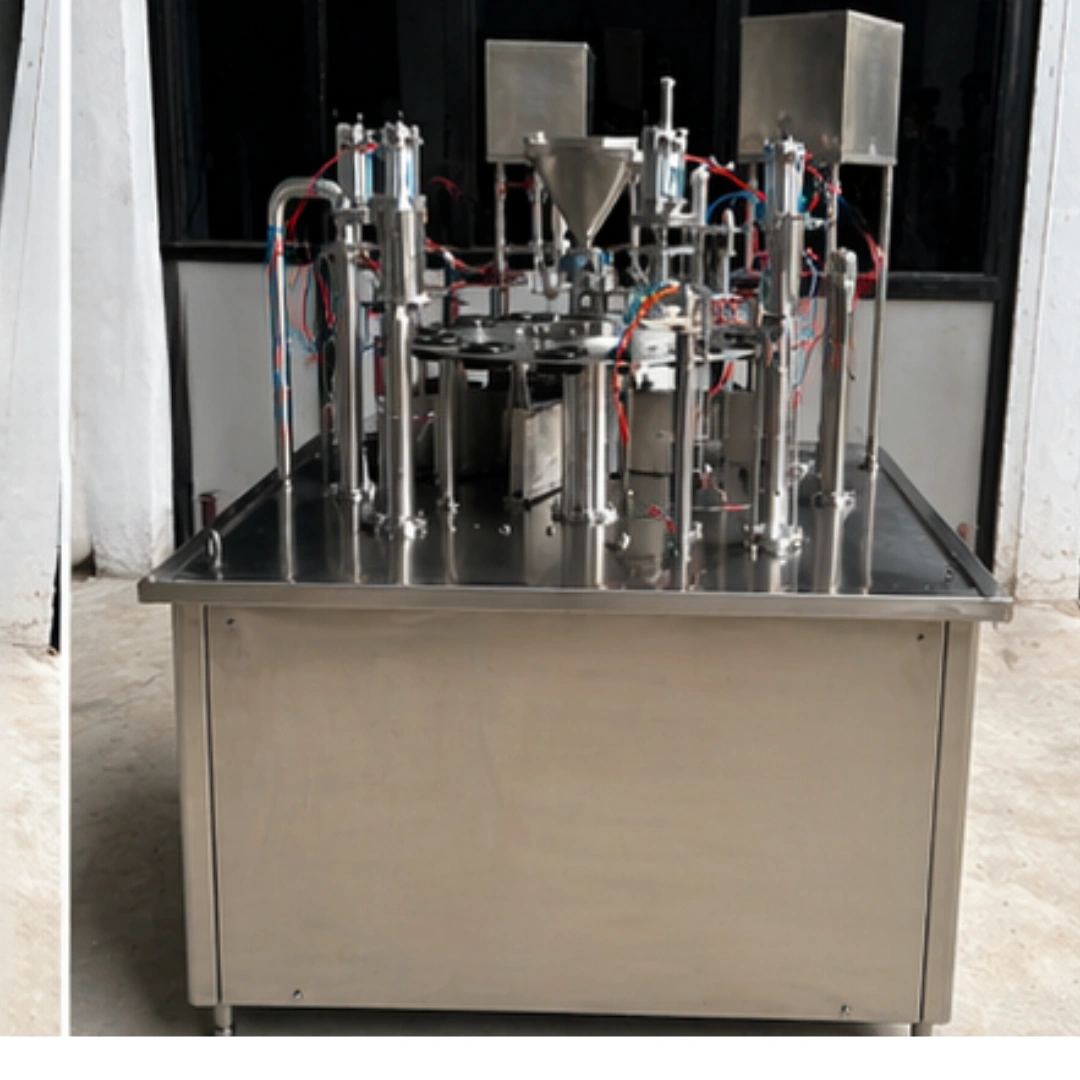

Automatic Cup & Cone Filling

Model: ICCF, Single line and double line Rotary type with PLC. Capacity of Machine: 3000/6000 pcs/hr. Gear Motor: 1 HP (3 Phase, 440 Volt). Air Compressor: 7.5 HP/15 HP (3 Phase, 440 Volt). Air Supply: 1000 Ltr/min at 6 kg pressure. Ice Cream Filling Quantity: 40 ml minimum up to 150 ml maximum. Ingredient Size: 10 mm × 10 mm × 10 mm. Dies: 48 Total Numbers. 40 ml & 100 ml Cup (24 nos. die). 40 ml & 120 ml Cone (24 nos. die). Machine Over All Size (Approx): (L) 100 mm × (W) 1100 mm × (H) 1900 mm.
